Adapted Head Pointer

This head pointer clip allows for a person who uses a head pointer already, or maybe would benefit from a head pointer, the ability to paint, write and possibly use a computer.

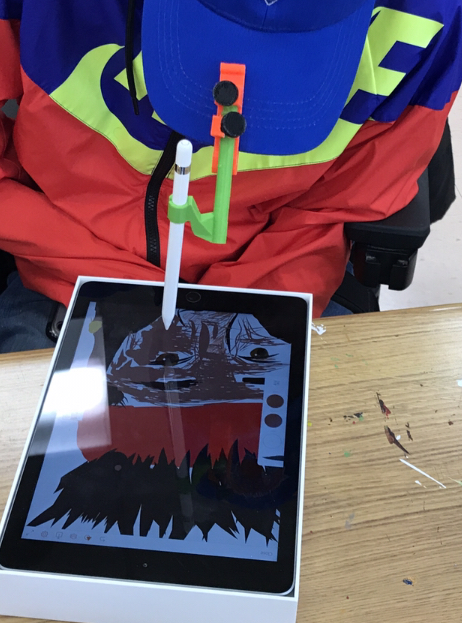

A writing instrument, paint brush or dowel is secured directly to the clip using two screws. The clip can then be slid onto the brim of a baseball cap or visor.

Alternatively, to provide for a better viewing angle, the writing instrument, paint brush, or dowel can be inserted into the offset holder, and then the offset holder can be secured to the clip.

The adapter will also work with an Apple Pen when using an iPad or iPhone, because it is Bluetooth. It will not work with a regular stylus.

This device is designed for someone who uses a head pointer

This device requires beginner level 3D printing

Clean off any support material from the 3D prints.

Insert the writing instrument, paint brush, or dowel into the clip to secure it in place.

If using the offset holder, insert the writing instrument, paint brush or dowel into the offset holder and then insert the offset holder into the clip and use the screws to secure it in place.
