Camera Mount Adapter for Micro Light Switch
If you're looking for an affordable way to mount the Micro Light Switch, this Camera Mount Adapter allows users to attach the assistive button to inexpensive camera mounts.
Mechanics
3D Printing
1
10
2
459Device Information
Overview
Traditional systems for mounting assistive devices are expensive. This 3D print is a mounting adapter for connecting the commercially available Micro Light Switch to inexpensive camera mounts that use ¼"-20 threading.
This adapter was designed by ATMakers.
How To Use

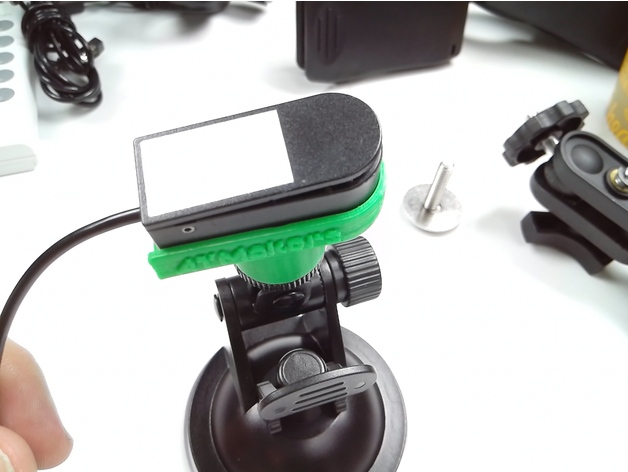

Screw a 1/4″-20 t-nut from the inside of the adapter until fully seated. Pro tip: use a 1/4"-20 screw from the outside to install the t-nut.
Secure the adapter to the switch using a screw and attach to a camera mount.
Disability Type Description
Switch users who have movement-limiting disabilities like spinal cord injuries, muscular dystrophy, and ALS may find this device useful for their wheelchair setup.
Estimated Cost (CAD)
Maker Information
Skills Description
This is a beginner level build that involves 3D printing and minimal assembly.
Print Time (hrs)
1
Assembly Time (hrs)
0.25
Tools Needed
Common Hand Tools;3D Printer
Build Instructions
This device consists of a single 3D printed part and minimal assembly.
Print Settings: (ATMakers)
- 0.2 mm layer height
- 20% infill
- Yes Supports
Project Link
Please login or register to agree to the MMC Terms of Use to access the Project Link
License
Attribution
Reviews
There are no reviews for this device
