Finger Lift Switch
If you wish you could activate an assistive switch with the lift of a finger, the Finger Lift Switch is the assistive switch that allows you to do exactly that! It is a low-force switch that is activated by lifting your finger up instead of pressing down.
3D Printing
7
42
3
1.2kDevice Information
Overview
The Finger Lift Switch is an assistive switch that is activated by lifting a resting finger upwards. The switch activation distance is approximately 5 mm and the required operating force is 2 to 5 grams, depending on the balance screw adjustment.
Cost
The cost of components for a single switch is approximately $11 CAD. However, obtaining the minimum quantities for a single build will bring the materials costs to $66 CAD.
How To Use

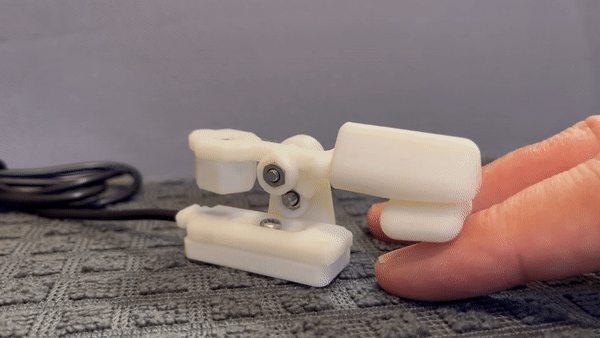

Connect the cable to an assistive device with a 3.5 mm input jack. The user’s lifting fingertip should be placed under the finger lift pad, resting on a lower surface or splint.
When the user raises their lifting finger, the finger lift lever will rotate and activate the switch. The switch will de-activate when the user lowers their lifting finger back to the resting surface.
For more information, see the Finger Lift Switch User Guide.
Disability Type Description
Users who find traditional switches hard to press may find the Finger Lift Switch easier to use.
Estimated Cost (CAD)
Maker Information
Skills Description
This device is an intermediate build that involves 3D printing, soldering and assembling small parts.
Print Time (hrs)
1.5
Assembly Time (hrs)
0.5
Tools Needed
Common Hand Tools;3D Printer;Soldering Iron
Build Instructions
Refer to the following documentation for detailed instructions:
Project Link
Please login or register to agree to the MMC Terms of Use to access the Project Link
License
Attribution
