Knife Guide Arthritis Aid
The Knife Guide Arthritis Aid is a handle that attaches to the back of a knife that allows a user to use both hands and requires less grip strength for the same amount of control.
Mechanics
3D Printing
26
193
2
2.6kDevice Information
Overview
The Knife Guide Arthritis Aid is a handle that attaches to the back of a knife that allows a user to use both hands while cutting and requires less grip strength for the same amount of control.
How To Use

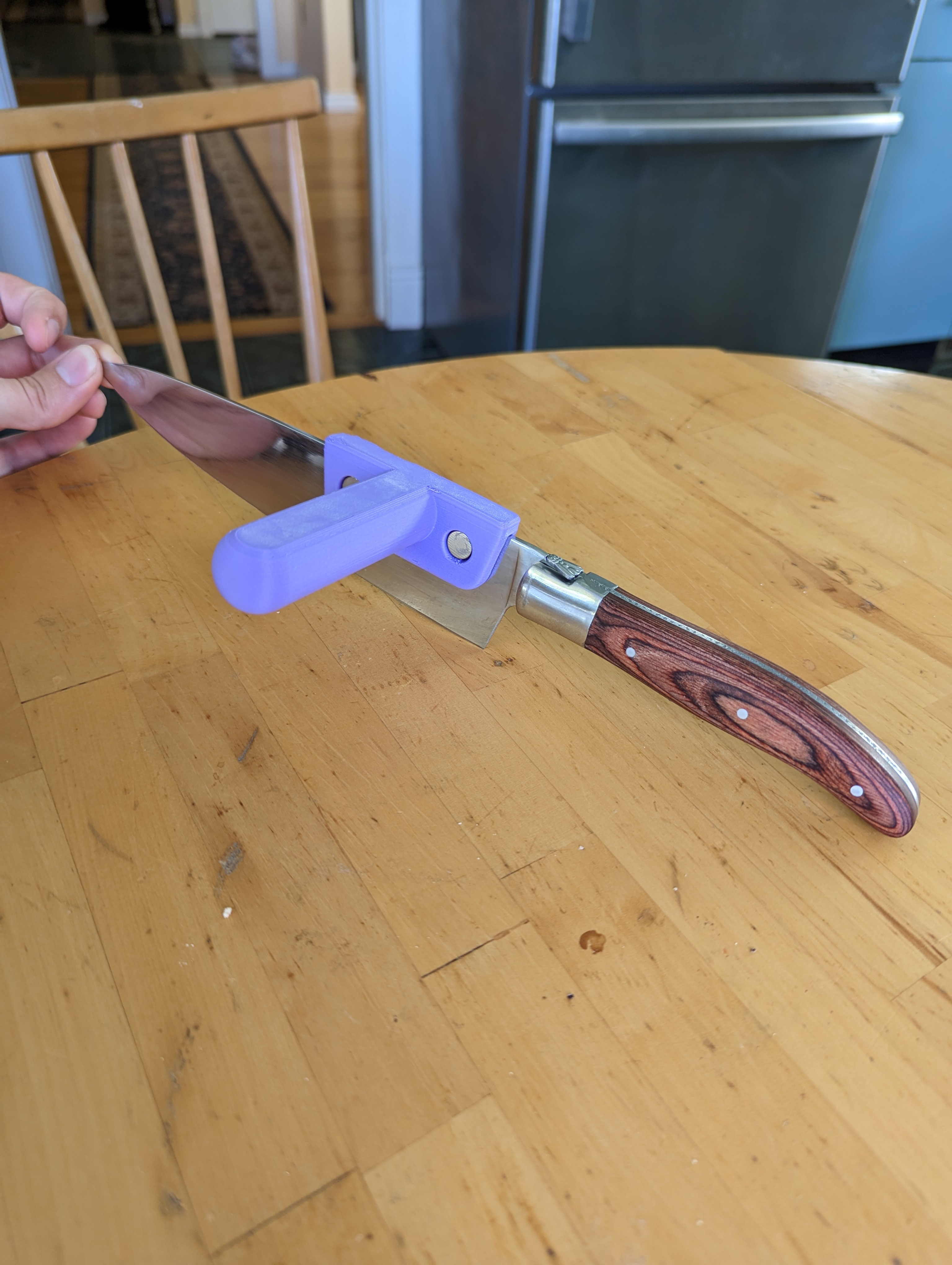

To use, place the device over the back of the knife. The new handle can now be gripped at a more natural angle than the original handle, and the knife used as normal. However, at least one hand must remain on the original handle during use. Attempting to hold the knife with just the new handle could cause the knife to fall out of the handle.
Disability Type Description
This device is intended to support people with arthritis when cutting with a larger kitchen knife.
Estimated Cost (CAD)
Maker Information
Skills Description
This project requires basic 3D printing and some assembly using super glue and strong magnets.
Print Time (hrs)
3
Assembly Time (hrs)
0.5
Tools Needed
3D Printer
Build Instructions
For full assembly instructions please refer to the Assembly Guide, or visit the document on GitHub.
Print Settings:
- 0.2 mm Layer Height
- 20% Infill
- No Supports
Project Link
Please login or register to agree to the MMC Terms of Use to access the Project Link
License
Attribution
Designers: • Initial design by Christopher Thormodson • Revisions and documentation by Neil Squire Society/Makers Making Change
Everything needed or used to design, make, test, or prepare the Knife Guide Arthritis Aid is licensed under the MyMiniFactory - Credit - Remix - Noncommercial.
Accompanying material such as instruction manuals, videos, and other copyrightable works that are useful but not necessary to design, make, test, or prepare the Knife Guide Arthritis Aid are published under a Creative Commons Attribution-ShareAlike 4.0 license https://creativecommons.org/licenses/by-sa/4.0/ (CC BY-SA 4.0).
