Pill Splitter
The pill splitter is an easy to use device that slices a pill into two without the risk of crushing it.
Mechanics
3D Printing
18
140
2
1.8kDevice Information
Overview
The pill splitter is an easy to use device that slices a pill into two. This device is intended for users that need to cut pills into two and have difficulty doing so without crushing the pill.
How To Use

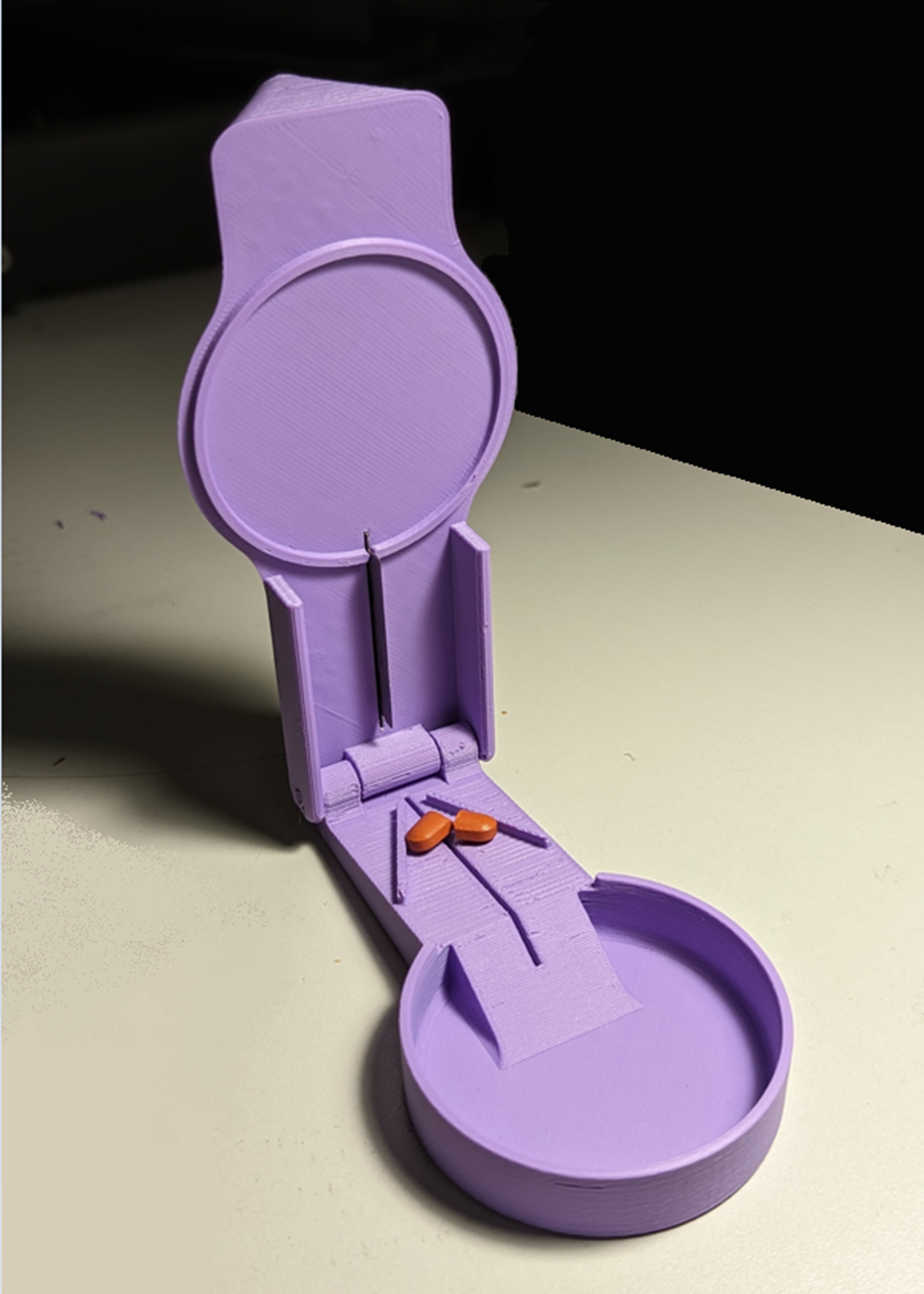

To use, place a pill over the slot on the lower base, and center it between the two fences. Close the upper half of the device, and the built in razor blade will slice the pill in half.
Disability Type Description
This device is intended for users that need to cut pills into two and have difficulty doing so without crushing the pill.
Estimated Cost (CAD)
Maker Information
Skills Description
This is a project requiring basic 3D printing along with some simple mechanical assemble.
Print Time (hrs)
7
Assembly Time (hrs)
0.5
Tools Needed
Common Hand Tools;3D Printer
Build Instructions
For detailed assembly instructions please see the Assembly Guide.
Print Settings:
- 0.2mm Layer Height
- 20% infill
- No Supports
Project Link
Please login or register to agree to the MMC Terms of Use to access the Project Link
License
Attribution
Designers:
- Initial design by Aliaksei Petsiuk @apetsiuk - MyMiniFactory
- Modifications and documentation by Neil Squire Society/Makers Making Change
Reviews
Pill Splitter
alice2
This is a good design and works well. Only problem I have is opening it up afterwards. The top portion has a large "lip" but the bottom is fully covered by the top. A suggestion is to thicken the round bottom portion to create a lip to grip.
