Switch Latch
The Switch Latch is a modifier that lets you press a momentary switch once to toggle something on, and keep it on, and then press it again to toggle it off again.
Electronics
Mechanics
3D Printing
4
61
1
1.6kDevice Information
Overview
The Open Switch Latch is intended to convert a momentary switch input into a toggle switch output. The device was developed as several assistive switch users requested the ability to control lights and other devices in a semi-permanent manner, but do so, utilizing their preferred momentary assistive switches.
How To Use

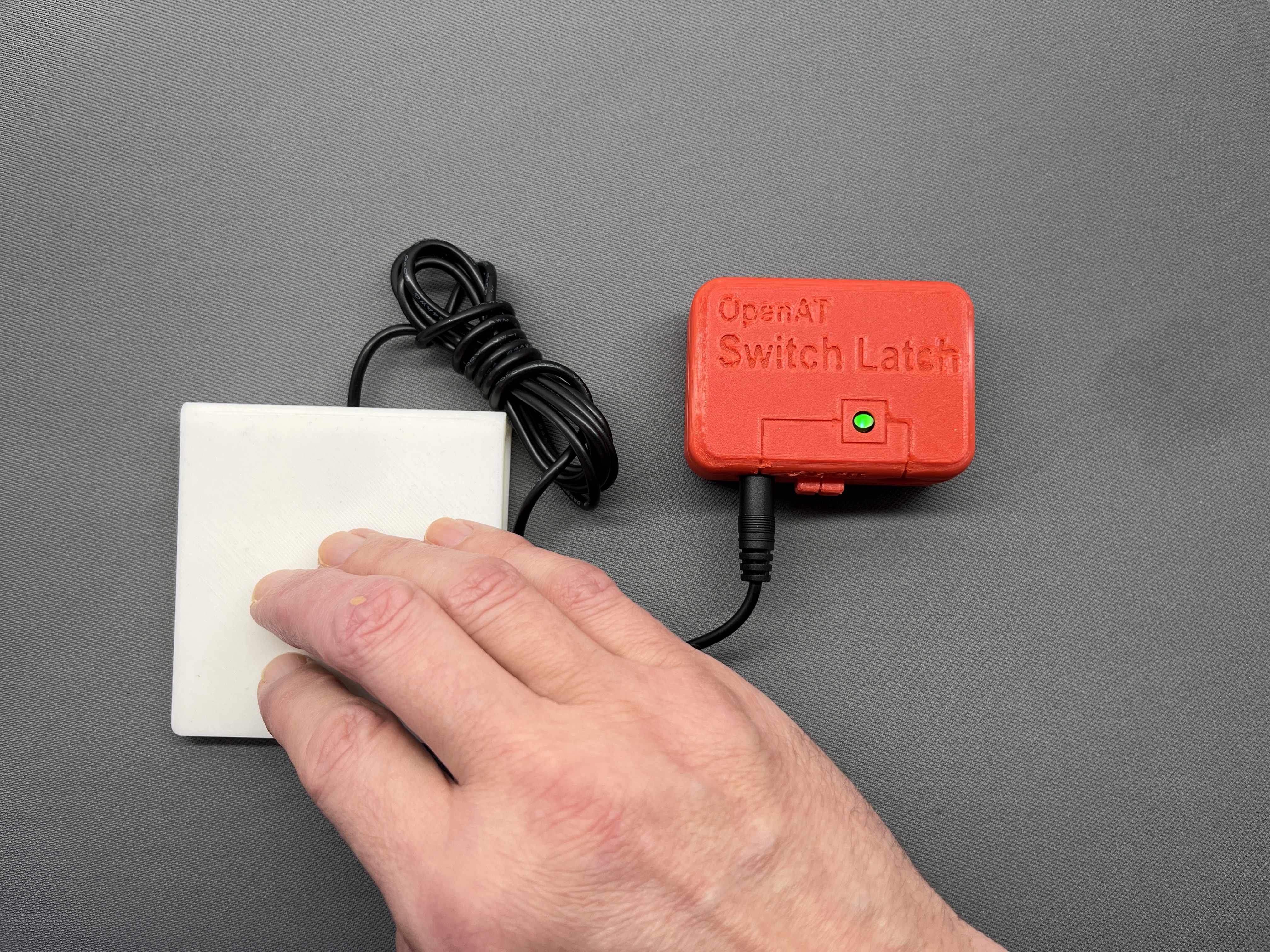

To use the Switch Latch, a momentary switch is plugged into the 3.5 mm input jack. A switch adapted device is then plugged into the 3.5 mm output jack. The power switch must be enabled to use the device. However, the device will turn itself off if there is no plug inserted into the input jack.
For full details please refer to the User Guide.
Disability Type Description
This switch modifier is for users of Assistive Switches who want to be able to turn something on, and keep it on without having to hold the button down the entire time.
Estimated Cost (CAD)
Maker Information
Skills Description
This is an intermediate project requiring 3D printing, soldering and assembly.
Print Time (hrs)
2.5
Assembly Time (hrs)
1
Tools Needed
Common Hand Tools;3D Printer;Soldering Iron
Build Instructions
For detailed assembly instructions please refer to the Assembly Guide.
Print Settings:
- 0.2mm Layer Height
- 20% Infill
- No Supports
Project Link
Please login or register to agree to the MMC Terms of Use to access the Project Link
License
Attribution
Designers:
- Derrick Andrews, Makers Making Change
Contributors:
- Jake Mclvor, Makers Making Change
- Milad Hajihassan, Makers Making Change
